供應上海靜元JDZ型波紋補償器
價格電議
- 所在地：上海 上海
- 發貨期：3天
- 發布時間 ：2017-04-10 10:51:54
產品詳情

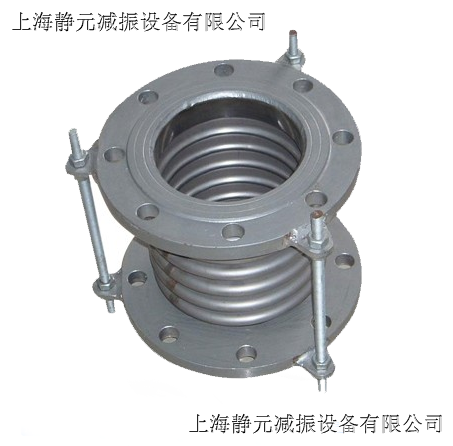

JDZ通用型波紋補償器
通用型波紋補償器習慣上也叫波紋補償器,波紋管,膨脹節,或伸縮節。由構成其工作主體的波紋管（一種彈性元件）和端 管,支架,法蘭,導管等附件組成。
軸向內壓式波紋補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形,以吸收管線,導管,容器等由熱脹冷縮等原因而產生的尺寸變化,或補償管線,導管,容器等的軸向,橫向和角向位移。也可用于降噪減振。在現代工業中用途廣泛。
|
序號 |
部位 |
材料 |
|
1 |
波紋管 |
不銹鋼 |
|
2 |
焊接法蘭 |
Q235-A/不銹鋼 |
|
3 |
端接管 |
Q23高等/不銹鋼 |
|
3 |
限位拉桿 |
Q235-A/不銹鋼 |
|
DN |
波數 |
壓力等級 Mpa |
濾紋管有效 面積 cm2 |
較大外徑尺 寸 mm |
長度 |
|||||
|
0.25 |
0.6 |
1.0 |
1.6 |
2.5 |
||||||
|
軸向補償量 mm/ 剛度 N/mm |
法蘭JDZ/F(mm) |
接管JDF/J(mm) |
||||||||
|
32 |
8 |
25/21 |
22/26 |
20/26 |
18/63 |
15/98 |
16 |
225 |
160/250 |
264/280 |
|
16 |
50/11 |
46/14 |
41/14 |
36/32 |
31/47 |
244/291 |
316/321 |
|||
|
40 |
8 |
25/28 |
22/44 |
20/44 |
18/89 |
15/106 |
23 |
244 |
164/259 |
269/289 |
|
16 |
50/14 |
46/22 |
41/22 |
36/45 |
31/55 |
230/304 |
319/334 |
|||
|
50 |
8 |
25/30 |
22/51 |
20/70 |
18/70 |
15/138 |
67 |
259 |
172/276 |
282/306 |
|
16 |
50/16 |
46/26 |
41/35 |
36/35 |
31/70 |
240/342 |
347/372 |
|||
|
65 |
8 |
33/28 |
30/35 |
26/44 |
22/55 |
19/68 |
55 |
270 |
215/294 |
300/322 |
|
12 |
42/16 |
38/22 |
38/32 |
34/40 |
29/50 |
260/334 |
340/362 |
|||
|
80 |
8 |
40/20 |
36/26 |
34/33 |
28/41 |
24/54 |
81 |
284 |
240/338 |
344/366 |
|
10 |
53/14 |
49/17 |
49/21 |
43/26 |
38/33 |
270/368 |
374/390 |
|||
|
100 |
6 |
45/47 |
45/60 |
40/75 |
35/93 |
29/117 |
121 |
304 |
235/317 |
323/345 |
|
10 |
76/26 |
74/32 |
64/40 |
57/50 |
49/63 |
305/381 |
387/409 |
|||
|
125 |
5 |
48/38 |
42/47 |
38/59 |
34/74 |
29/92 |
180 |
334 |
282/314 |
316/342 |
|
9 |
85/23 |
77/29 |
66/36 |
58/45 |
50/56 |
382/386 |
388/414 |
|||
|
150 |
5 |
49/42 |
44/50 |
40/62 |
34/78 |
29/97 |
257 |
364 |
282/389 |
338/367 |
|
8 |
79/34 |
71/43 |
64/51 |
54/59 |
46/65 |
356/399 |
402/427 |
|||
|
200 |
4 |
52/49 |
46/55 |
42/68 |
38/78 |
34/111 |
479 |
442 |
280/384 |
348/372 |
|
6 |
73/31 |
65/44 |
59/52 |
53/58 |
48/78 |
340/402 |
402/426 |
|||
|
250 |
4 |
72/30 |
65/34 |
59/42 |
52/45 |
47/55 |
796 |
507 |
315/379 |
415/379 |
|
6 |
108/16 |
97/21 |
87/35 |
79/39 |
71/47 |
393/459 |
493/399 |
|||
|
300 |
4 |
72/51 |
65/55 |
59/59 |
52/65 |
47/71 |
1105 |
562 |
366/427 |
466/467 |
|
6 |
108/32 |
97/35 |
87/37 |
79/41 |
71/45 |
464/525 |
564/565 |
|||
|
350 |
4 |
72/58 |
65/62 |
59/67 |
52/74 |
47/81 |
1307 |
622 |
397/452 |
497/492 |
|
6 |
108/38 |
97/41 |
87/44 |
79/48 |
71/47 |
509/564 |
609/604 |
|||
|
400 |
4 |
72/54 |
65/58 |
59/62 |
52/68 |
47/75 |
1611 |
700 |
412/478 |
512/518 |
|
6 |
108/36 |
97/39 |
87/43 |
79/47 |
71/52 |
522/588 |
622/628 |
|||
|
450 |
4 |
108/32 |
97/35 |
87/37 |
79/41 |
71/45 |
1972 |
760 |
503/498 |
503/523 |
|
6 |
162/20 |
145/22 |
131/23 |
118/25 |
106/28 |
503/658 |
603/648 |
|||
|
500 |
4 |
108/59 |
97/64 |
87/68 |
79/75 |
71/82 |
2445 |
835 |
431/523 |
531/554 |
|
6 |
162/34 |
145/37 |
131/39 |
118/43 |
106/48 |
531/655 |
631/742 |
|||
|
600 |
4 |
108/74 |
97/80 |
87/85 |
79/94 |
71/103 |
3534 |
980 |
478/548 |
578/588 |
|
6 |
162/42 |
145/45 |
131/49 |
118/53 |
106/60 |
658/679 |
758/781 |
|||
|
700 |
4 |
108/67 |
97/72 |
87/77 |
79/85 |
71/95 |
4717 |
1110 |
490 |
590 |
|
6 |
162/42 |
145/45 |
131/49 |
118/53 |
106/60 |
690 |
790 |
|||
|
800 |
4 |
120/88 |
108/95 |
102/102 |
94/112 |
82/123 |
5822 |
1265 |
502 |
602 |
|
6 |
183/67 |
164/72 |
156/77 |
144/85 |
125/93 |
610 |
710 |
|||
|
900 |
4 |
120/84 |
108/90 |
102/97 |
94/107 |
82/117 |
7620 |
1186 |
|
689 |
|
6 |
183/60 |
164/65 |
156/69 |
144/76 |
125/84 |
|
850 |
|||
|
1000 |
4 |
120/90 |
108/98 |
102/105 |
94/116 |
|
9043 |
1286 |
|
692 |
|
6 |
183/59 |
164/65 |
156/71 |
144/81 |
|
|
||||
