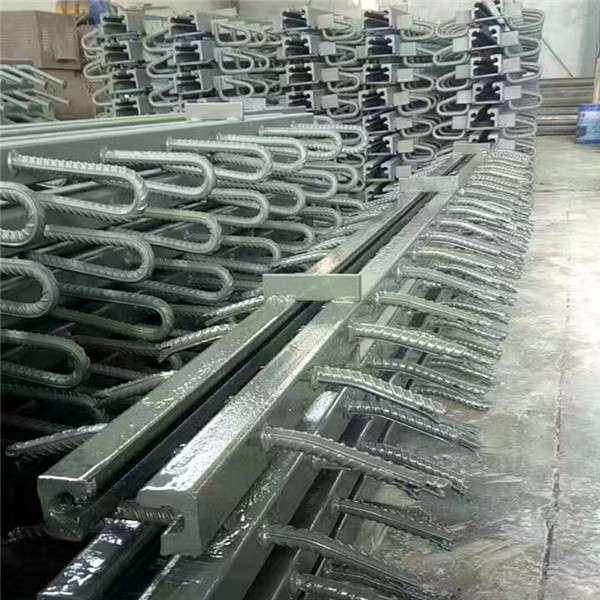

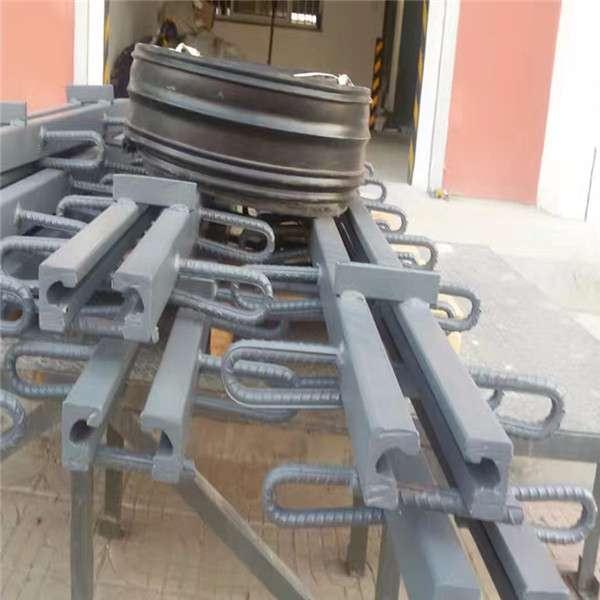

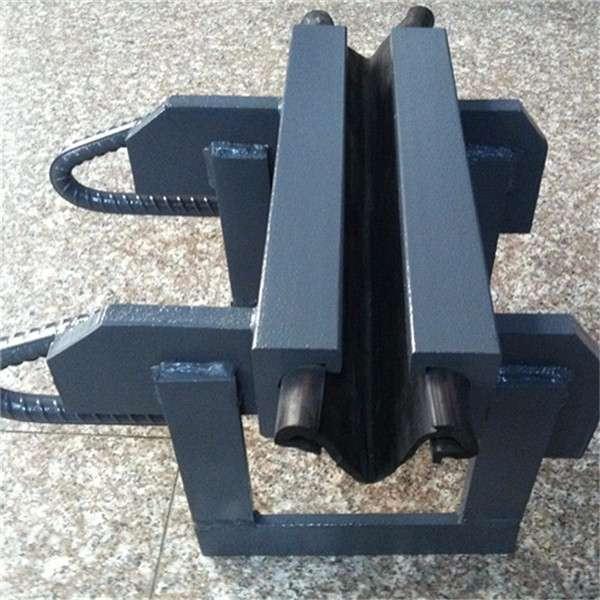

伸縮縫由一條整長的橡膠密封條,一組剛質邊梁及錨固件組成。鋼質邊梁內側帶有能固定橡膠密封條的溝槽。焊固在鋼梁外側的錨固件,與梁端預埋鋼筋相焊接,澆筑高度度混凝土過渡后,同梁體連接可靠,具有與橋面接合平順,密封止水,伸縮靈活,行車平穩,使用壽命長的特點。使用于伸縮量0～80mm的橋梁。
The expansion joint consists of a full length rubber seal, a set of rigid side beams and anchors. The inner side of the steel edge beam is provided with a groove capable of fixing the rubber sealing strip. Welded on the outside of the anchor beam, and beam end embedded steel welding, casting of high strength concrete beams after the transition, with reliable connection, with the deck water sealing, smooth engagement, scalable and flexible, stable running, long service life. Used in expansion of 0 to 80mm bridge.
主要材料：
Main material:

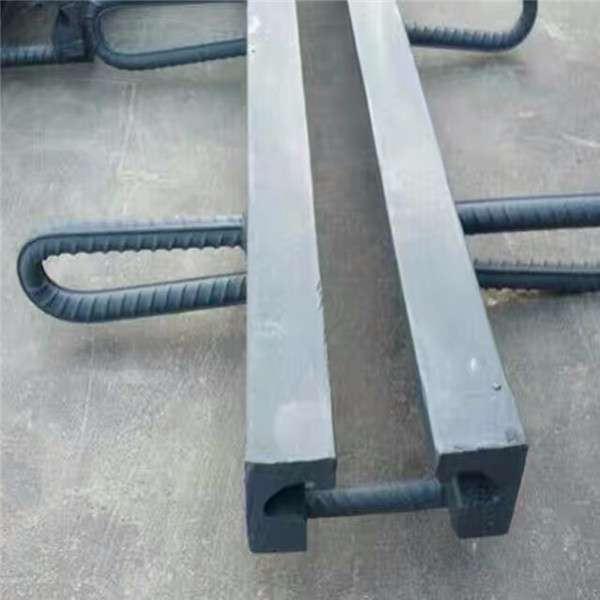

鋼質邊梁：采用16Mn的鋼軋制,部面呈c形。橡膠密封條：采用氯丁橡膠制造,具有良好的耐老化,耐撓性能。
Steel edge beam with steel rolling 16Mn, the Ministry is C. Rubber sealing strip: made of chloroprene rubber, it has good aging resistance and scratch resistance.
固錨件：有錨栓,錨環,錨板結構三種,設計工程師可根據橋面板設計厚度選用,間距一般為20cm,本廠也可根據設計工程師特定設計制造。
Solid anchor: there are anchor, anchor ring, anchor plate structure of three kinds, the design engineer can according to the bridge panel design thickness selection, the distance is generally 20cm, the factory can also be designed according to the design engineer specific design.
選定伸縮縫規格尺寸:
Select dimensions of expansion joints:
選定伸縮縫的規格尺寸與使用壽命關系很大,在設計時應考慮足夠的伸縮富余量。
The size and size of the expansion joint are closely related to the service life, and sufficient allowance should be taken into account during the design.
當橋梁位移方向與伸縮縫中心線正交時,選用伸縮縫規格比較容易,但橋梁位移方向與伸縮縫中心斜交時,須分解成平行與垂直于中心線的兩個矢量,選用伸縮縫規格取決于兩個矢量當中的一個。

連云港gqf-em-50橋梁伸縮縫 ***

When the bridge displacement direction and the center line of the orthogonal expansion joints, expansion joints selection specification is relatively easy, but the direction and displacement of bridge expansion joint center oblique, must be decomposed into parallel and perpendicular to the center line of the two vectors, the expansion joint specification depends on two vector one.
與接縫平行的矢量：△Lp=△L.cosβ
With the joint vector parallel: Delta Lp= Delta L.cos beta
與接縫垂直的矢量：△Lr=△Lr.sinβ
With the joint vector perpendicular: Delta Lr= Delta Lr.sin beta
式中：表示橋梁位移的總變形量；為位移方向與接縫方向的交角
Type: said the total deformation of bridge displacement; displacement angle direction and the direction of the joint
β=45゜ ∽135°
Beta =45 ~ 135 degrees Eve joy
△Lr是選用伸縮縫規格的依據, △Lp的變形一般由橡膠密封條的水平錯動老完成,對伸縮縫的選用無太大的影響。
Lr is the selection of expansion joint specification, deformation Delta Lp is generally composed of rubber sealing strip the old fault level, without too much influence on the expansion joint.
例：設計橋梁沿結構中心線位移95mm,伸縮縫與其斜交40°,按公式計算△Lr=73mm,△Lp=61mm選用本型號的伸縮縫是適用的。
Example: the design of bridge structure displacement along the center line of the 95mm, with its 40 degree oblique joints, calculated according to the formula of delta Lr=73mm, Delta Lp=61mm used this type of telescopic seam is applicable.
同時要注意,膠條以中部為準,水平錯動量在前后兩個方向都是不應超過40mm,如計算中發現有過量錯動,須選用更大規格的伸縮縫。
At the same time, pay attention to the tape to the middle of the quasi horizontal error in the two directions are not more than 40mm, such as the calculation found excessive excessive movement, we must choose a larger size of expansion joints.
設計時,如帶有人行道,防撞墻結構的,必須將設計角度,尺寸數據提供給本廠,便于工廠按設計要求整體制造。
Design, such as with sidewalks, anti-collision wall structure, we must design angle, size data available to our factory, so as to facilitate the factory according to the design requirements of the whole manufacturing.
安裝前現場準備

連云港gqf-em-50橋梁伸縮縫 ***

Site preparation before installation
GQF-C型伸縮縫是在本廠制造并組裝,若整條伸縮縫超長不能運輸或工程需分段施工,需在現場焊接一體后,再組裝橡膠密封條。
GQF-C type expansion joint is manufactured and assembled in our factory. If the whole expansion joint is too long to transport or the project needs to be constructed separately, the rubber sealing strip should be assembled after welding in the field.
（1） 伸縮縫預留槽口,在澆筑擬安裝伸縮縫的梁體,橋臺時,在端部預留符合安裝尺寸的槽口,推薦尺寸見表1。
(1) the expansion joint shall be provided with a notch, and when installing the beam body and abutment to be fitted with expansion joints, a notch fitted to the installation dimension shall be reserved at the end, and the recommended size shall be shown in table 1.
表1 單位mm
Table 1 unit mm
固錨件型式 槽口寬度 槽口高層度
Solid anchor type, notch width (b), notch depth (H)
錨栓 ≥350 80∽120 錨環 ≥35080∽120錨板 ≥350 ≥150
The anchor bolt is greater than or equal to 35080 to 120 to 120 more than 35080 anchor ring anchor plate is greater than or equal to 350 = 150
注：特殊設計另定
Note: special design is fixed
（2） 預埋鋼筋設置：在澆筑梁體或橋臺時,應設置預埋鋼筋。
(2) setting up the embedded steel bar: when placing the beam or abutment, the embedded reinforcement shall be installed.
預埋高層度不小于50cm,并與梁體,橋臺內結構鋼筋連接一體；間距尺寸為20cm應和伸縮縫錨固件保持一致。
The embedment depth shall be no less than 50cm, and shall be integrated with the beam body and the inner structure reinforcement of the abutment. The spacing shall be 20cm and shall be in accordance with the expansion joint anchor.
（3） 梁端間隙應不小于梁體伸長度,在預制,現澆或吊裝時由設計工程師根據當?shù)貧鉁卮_定。
(3) the beam end clearance should be not less than Tishen beam length in prefabricated and cast-in-situ or lifted according to the local temperature determined by the design engineer.
